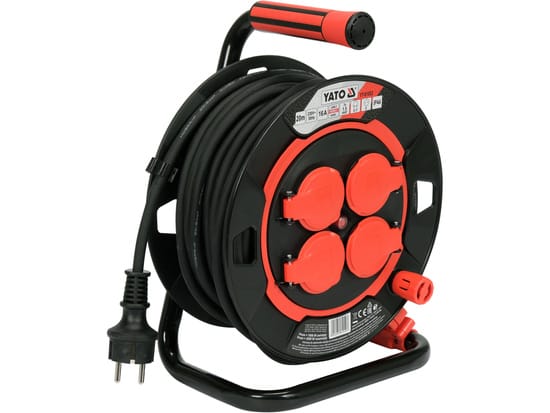

YATO YT-81052 20M CABLE REEL

Product Number
Brand: Yato
Part Number: Yt-81052
Series: Grf
Length: 20 M
Extension Cord Type: Drum
Max. Current: 16 A
Voltage: 230 V A.C.
Weight: 4.55 Kg
Frequency: 50 Hz
Nest Type: E
Plug Type: E & F
Earthing : Yes
Socket Quantity: 4
Wire Insulation Type: H05rr-F
Wire Section Area: 3gx1.5 Mm²
Reel Material: Pvc
Color: Black
Overheat Protection: Yes
Protection Grade: Ip44
Max. Load Capacity (Completely Coiled Wire): 1000 W
Max. Load (Cable Fully Unrolled): 3000 W
Switch: No
Children Protection: Yes
Stand / Tripod: Yes

Condition: New

Features:
High-Quality Reel Extension Cable With Length Of 20m With 4 Socketsi. The Cable Is Made Of 3 Copper Wires With A Cross-Section Of 1.5mm² Each. Such Cable Cross-Section Makes It Possible To Connect 4 Devices To These Extension Cords At The Same Time, Which Is Especially Useful At Construction Sites, Workshops Or Factories. The Wires Are Covered With Insulation Made Of Natural Rubber H05RR-F, Which Is Characterized By High Resistance To Mechanical Damage, Atmospheric Factors, Chemical Substances (Cutting Oils, Gasoline, Or Ethyl, Methyl Alcohols). Such Insulation Provides A Voltage Rating Of 300V / 500V.

Also, The Extension Cord Is Made According To IP 44.

Thanks To The Use Of Dust-Proof And Splash-Proof Plugs Allows The Use Of These Extension Cords Both Indoors And Outdoors, Such As On Construction Sites, In Gardens, In Yards In Front Of Factories. Thanks To Its Splash-Proof And Dust-Proof Properties, It Provides Excellent Protection Against Moisture Or Dust And Sand.

Purpose/Application

Interiors As Well As Outdoors, Such As Construction Sites, Gardens, Yards In Front Of Factories

Voltage And Frequency Rating: ~230V/50Hz
Maximum Load: 1000 W – Coiled Cable, 3000 W – Uncoiled Cable
Copper Three-Conductor Cable Of 1.5 Mm², Length 20 M
.Natural Rubber Insulation Is High Resistance To Mechanical Damage, Atmospheric Factors (Sun, Cold), Chemical Substances (Cooling And Lubricating Oils, Gasoline, Or Ethyl And Methyl Alcohols), Provides Flexibility Of The Cable And Proper Protection Also During Outdoor Operation
Plastic Cable With A High Resistance To Mechanical Damage, Atmospheric Factors (Sun, Cold), Chemical Substances (Cooling And Lubricating Oils, Gasoline, Or Ethyl And Methyl Alcohols)./Li>
The Dust And Splash-Proof Sockets With IP44 Degree Of Protection Guarantee Protection Against Moisture Or Dust And Sand
The Thermal Protection Will Cut Off The Power Supply At The Temperature Of The Cable 56°C +-5°C
Child Protection In The Form Of Plastic Flaps And A Special Mechanism Makes It Difficult To Access The Socket Openings

Designation H05RR-F Means A Tire Cable Made According To The Harmonized Standard (H), For Rated Voltage Of 300/500V (05)., With Natural Rubber Insulation (R), With Natural Rubber Sheath (R) And Multi-Strand Flexible Conductors (-F).

Technical Data

Unit: Pcs
Color: Black
Number Of Sockets: 4
Extension Type: Construction
Grounding: Yes
Length [M]: 20
Cable Cross-Section: 1.5
No . Of Conductors [Pcs]: 3
Type Of Insulation: RR-F
Grade Of Protection [IP]: 44
