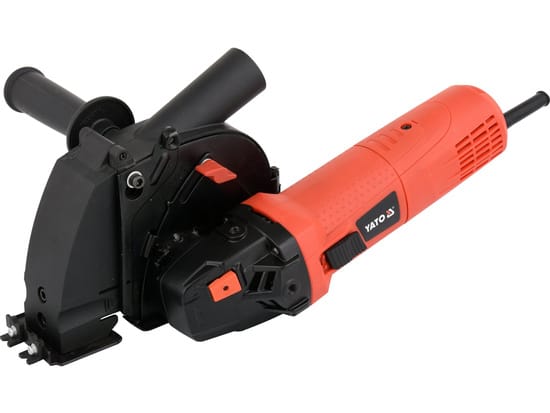

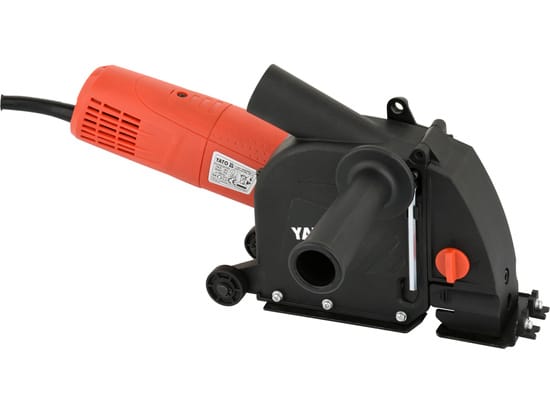

YATO YT-82015 125MM 1700W WALL CHASER

Product Description: Wall Chaser
Brand: Yato
Part Number: YT-82015
Series: GRF
Power: 1700 W
Turnover: 10500 Min⁻¹
Voltage: 230-240 V A.C.
Frequency: 50 Hz
Cutting Disc Outer Diameter: 125 Mm
Cutting Disc Internal Diameter: 22.2 Mm
Cutting Disc Max. Thickness: 1.9 Mm
Cutting Depth: 0-28 Mm
Cutting Width: 5-30 Mm
Cable Length: 3 M
Electric Insulation Class: II
Protection Grade: IP20
Vibrations : 2.8 ± 1.5 M/S²
Weight: 2.4 Kg
Set Includes: Wall Chaser, Additional Handle, Abrasive Disc Cover, Key For Mounting The Abrasive Disc, Shield X2
Compatible With: YT-59962

Condition: New

Features:
Paving Machine 1700w 125mmUniversal Paving Machine, Which Can Be Used For Groove Cutting And Dust-Free Cutting When Connected To A Vacuum Cleaner, Or As A Powerful Angle Grinder After Removing The Paving Guard And Putting On A Standard Angle Grinder Disc Guard.

Adapted To Work In Walls, Ceilings And Floors For The Installation Of Cables, Central Heating Pipes, , Alarm And Telecommunication Installations And Building Automation Controls

Durable And Easy To Use. For Professional Use.

Chasing Machine And Powerful Angle Grinder:
With The Installation Of A Standard Cover From An Angle Grinder (Not Included) And A Single Disc, The Paving Machine Becomes A Powerful Universal Angle Grinder

The Switch Has Been Positioned So That It Can Also Be Operated With One Hand And At The Same Time In Such A Position That It Is As Little Exposed To Dust As Possible
The Design Is Similar To That Of A Contra-Angle Handpiece; It Is Therefore Lightweight And Very Handy
Dust Extraction Is Particularly Useful When Working In Confined Spaces

Easy Grooving In Corners:
Swiveling Blade Guard, Useful When Grooving In Interior Corners.

The Tilting Of The Guard Allows You To Cut Grooves To The End Of The Walls In The Corners, So There Is No Need To Correct The Groove With A Hammer Drill Or Forging With A Hammer.

Large Width Range:
Steel Reduction Rings With Different Diameters Allow You To Choose The Distance Between The Discs. This Makes It Possible To Create A Groove Of A Specific Width, Such As A Narrow Groove For Alarm Wiring Or A Wide Groove For 16 Mm PEX Water Pipes.

Max. Cutting Width [Mm]: 30
Set Of 5 Reduction Rings Included

Tool-Free Depth Adjustment:
Cutting Depth Adjustment Is Carried Out By Sliding Or Sliding The Movable Blade Guard. An Approximate Cutting Depth Scale Has Been Marked On The Guard.
Adjustment Is Carried Out Without Tools By Means Of An Easily Accessible Butterfly.

Solutions Facilitating Work:
Connection For Dust Extraction – Useful When Working In Confined Spaces
Line Guides Allow To Guide The Paving Machine Along The Marked Line
Wheels For Smooth Sliding – Relieves The Burden On Hands And Speeds Up Work, Also Helps When Making Furrows In The Ceilingadditional Handle

Additional Information:
Strong Gearbox And Powerful Motor Suitable For Cutting In Concrete And Reinforced Concrete
High Power Of 1700W, Generated By A Commutator Motor With Copper Winding, Suitable For Simultaneous Operation With Two Blades
Furrowing Machine Slats Protected Against Dust With An Additional Wall, So That Dust Does Not Get Inside The Device Easy Replacement Of Discs
Possibility To Furrow In The Inner Corners (Tilting Cover At The Front Of The Machine)
Full Housing Allows For Effective Dust Extraction With A Vacuum Cleaner
Adjustable Width And Depth Of Cut
Comfortable And Safe Switch
Fast Cutting In Reinforced Concrete And Ergonomically Located Center Of Gravity Reduce Operator Fatigue
High Quality Workmanship And Durability Of Details (Rubber Cable, Reduction Rings For Adjusting Disc Spacing)
Included: Two Diamond Blades 125 Mm, Set Of 5 Reduction Rings
