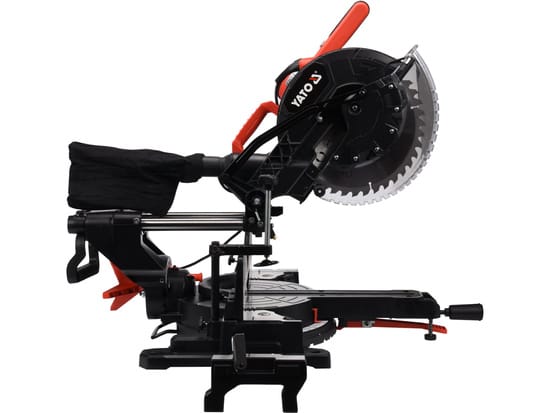

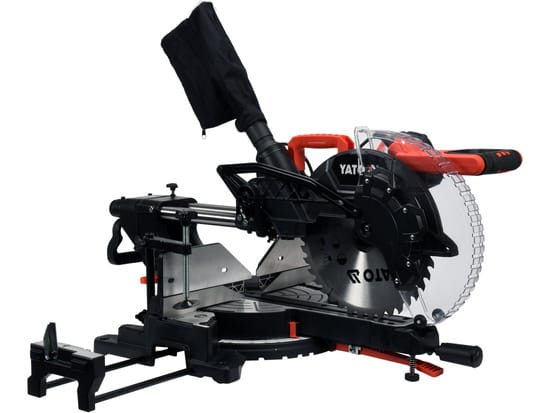

YT-82175BS 305MM 1800W MITER SAW WITH LASER

Product Description: Miter Saw With Laser
Brand: Yato
Part Number: Yt-82175bs
Series: Grf
Application: Wood, Panels, Laminates, Plastics, Poles, Purlins, Joists
Power: 1800 W
Rotations: 5000 Min⁻¹
Voltage: 220-240 V A.C.
Frequency: 50 Hz
Cutting Disc Outer Diameter: 305 Mm
Cutting Disc Internal Diameter: 30 Mm
Cutting Disc Max. Thickness: 3 Mm
Number Of Teeth: 40
Max. Cutting Height X Max. Cutting Length Rotating Angle At Level 0° / Gradient 0°: 105×340 Mm
Max. Cutting Height X Max. Cutting Length Rotating Angle At Level 45° / Gradient 0°: 105×235 Mm
Max. Cutting Height X Max. Cutting Length Rotating Angle At Level 0° / Gradient 45°: 60×340 Mm
Max. Cutting Height X Max. Cutting Length Rotating Angle At Level 45° / Gradient 45°: 60×235 Mm
Min. Dimensions Of Processed Material Processed: 200x20x20 Mm
Laser: Yes
Laser Class: 2
Laser Power: ˂ 1 Mw
Laser Wave Length: 650 Nm
Laser Pointer Colour: Red
Wire Length: 3 M
Electric Insulation Class: Ii
Protection Grade: Ip20
Acoustic Pressure: 90.7 ± 3.0 Db(A)
Acoustic Power: 103.7 ± 3.0 Db(A)
Weight: 21 Kg
Set Includes: Miter Saw, Dust Collection Bag, Circular Saw, Work Table Extension X2, Work Table Clamp, Work Table Locking Screw

Condition: New

Features:
Cutting Bevel With 305mm 1800w Blade With Laser For Cutting Large Parts
Professional Mitre Saw With Feed And 305mm Blade Designed For Straight And Angular Cutting Of Large Elements (Pillars, Purlins, Joists).
Purposeful During Construction Work. Provides Precise And Fast Processing Of Materials With Large Cross Sections.
Provides Precise And Fast Processing Of Materials With Large Cross Sections
Features Of Yato Mitre Saw:

Stable Base With Precise Vertical And Horizontal Cutting Angle Adjustment
Lateral Extendable Supports Make It Easy To Cut Elongated Pieces
Laser Cutting Line Indicator
Bearing Cutting Wheel Advance
Smooth-Action Pivoting Blade Guard, Integrated Into The Switch
Clamp Integrated Into The Base Ensures Safe And Quick Immobilization Of The Workpiece
Readable Angle Graduation For Precise Cutting And Stable Settings
Possibility Of Using A Chip Bag Or Connecting A Vacuum Cleaner
Compact Dimensions And A Transport Handle In The Central Part Of The Housing Ensure Proper Balance And Easy Handling

Package Contents:

Cutting Machine
Dust Collection Bagdisc Saw
Workbench Extensions
Workbench Clamp
Workbench Locking Screw

Parameters:

Rating Voltage [V~]: 220 – 240
Rating Power [W]: 1800
Rating Speed [Rpm]: 5000
Shield Saw: Diam. Outer X Clamping Diameter X Thickness Max [Mm]: 305 X 30 X 3.0
Minimum Workpiece Dimensions: H. X Length X Thickness [Mm]: 20 X 200 X 20
Maximum Bevel Cutting Angle [Deg.]: 45
Insulation Class: II
Grade Of Protection: IP20

Weight [Kg]: 21

Max. Height X Max. Cutting Length:
Horizontal Rotation Angle 0 Deg. / Tilt Angle 0 Deg[Mm]: 105 X 340
Horizontal Rotation Angle 45 Deg.  / Tilt Angle 0 Deg. [Mm]: 105 X 235
Horizontal Rotation Angle 0 St. / Tilt Angle 45 St. [Mm]: 60 X 340
Horizontal Rotation Angle 45 St. / 45 St. Tilt Angle [Mm]: 60 X 235

The Bevel Allows You To Set Two Types Of Angles:

Longitudinal Cutting Angle: It Is Possible To Rotate The Head Within +/- 45 Degrees. To Make It Easier To Set The Head Angle, The Bevel Has A Scale With A Ratchet That Allows Easy Setting Of The Head At The Most Common Angles .Nbsp;(0; 15; 22.5; 31.6; 45 Degrees)

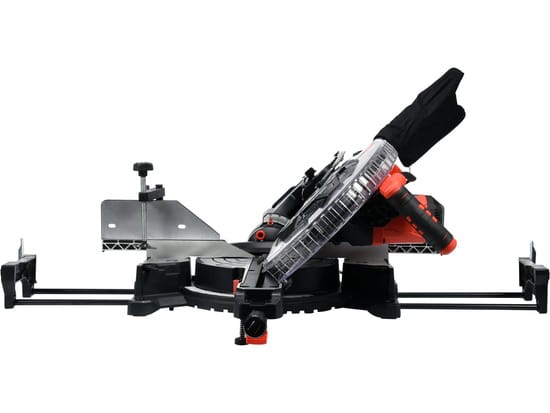

Cross-Cutting Angle (Bevel): It Is Possible To Tilt The Cutting Head By An Angle Not Exceeding 45 Degrees. When Setting The Angle, You Can Use The Scale Marked On The Base Of The Table
The Cutter Is Equipped With A Spigot That Enables The Connection Of An Attached Bag Or An External Dust Extraction System.
