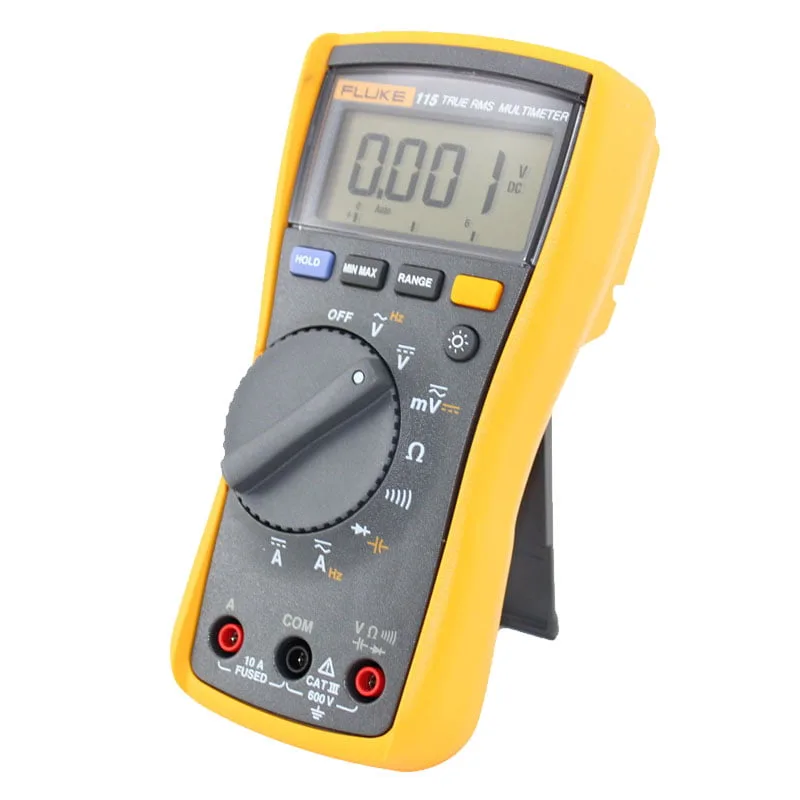

FLUKE 115 TRUE RMS DIGITAL MULTIMETER

Name: METER
Brand: FLUKE
Part Number: 115
Description: FIELD TECHNICIANS DIGITAL MULTIMETERS
Capacity: 600V
Category: INDUSTRIAL INSTRUMENT
Class: TESTS & INSPECTION EQUIPMENT
Range: METERS

FEATURES:
> DC MILLIVOLTS:
RANGE/RESOLUTION: 600.0 MV / 0.1 MV
ACCURACY: ± ([% OF READING] + [COUNTS]): 0.5% + 2

> DC VOLTS:
RANGE/RESOLUTION: 6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
ACCURACY: ± ([% OF READING] + [COUNTS]): 0.5% + 2

> AC MILLIVOLTS1 TRUE RMS:
RANGE/RESOLUTION: 600.0 MV / 0.1 MV
ACCURACY: 1.0% + 3 (DC, 45 HZ TO 500 HZ)
2.0% + 3 (500 HZ TO 1 KHZ)

> AC VOLTS1 TRUE RMS:
RANGE/RESOLUTION: 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
ACCURACY: 1.0% + 3 (DC, 45 HZ TO 500 HZ)
2.0% + 3 (500 HZ TO 1 KHZ)

> CONTINUITY:
RANGE/RESOLUTION: 600 Ω / 1 Ω
ACCURACY: BEEPER ON < 20 Ω, OFF > 250 Ω DETECTS OPENS OR SHORTS OF
500 ΜS OR LONGER.

> OHMS:
RANGE/RESOLUTION: 600.0 Ω / 0.1 Ω
6.000 KΩ / 0.001 KΩ
60.00 KΩ / 0.01 KΩ
600.0 KΩ / 0.1 KΩ
6.000 MΩ / 0.001 MΩ
ACCURACY: 0.9% + 1
RANGE/RESOLUTION: 40.00 MΩ / 0.01 MΩ
ACCURACY: 5% + 2

> DIODE TEST:
RANGE/RESOLUTION: 2.00 V / 0.001 V
ACCURACY: 0.9% + 2

> CAPACITANCE:
RANGE/RESOLUTION: 1000 NF / 1 NF
10.00 ΜF / 0.01 ΜF
100.0 ΜF / 0.1 ΜF
9999 ΜF / 1 ΜF
100 ΜF TO 1000 ΜF
ACCURACY: 1.9% + 2
RANGE/RESOLUTION: > 1000 ΜF
ACCURACY: 5% + 20%

> LO-Z CAPACITANCE:
RANGE: 1 NF TO 500 ΜF
ACCURACY: 10% + 2 TYPICAL

> AC AMPS TRUE RMS(45 HZ TO 500HZ):
RANGE/RESOLUTION: 6.000 A / 0.001 A
10.00 A / 0.01 A
ACCURACY: 1.5% + 3
20 A OVERLOAD FOR 30-SECONDS MAX

> DC AMPS:
RANGE/RESOLUTION: 6.000 A / 0.001 A
10.00 A / 0.01 A
ACCURACY: 1.0% + 3
20 A OVERLOAD FOR 30-SECONDS MAX

> HZ (V OR A INPUT)2:
RANGE/RESOLUTION: 99.99 HZ / 0.01 HZ
999.9 HZ / 0.01 HZ
9.999 KHZ / 0.001 KHZ
50.00 KHZ / 0.01 KHZ
ACCURACY: 0.1% + 2

USED BY:
> PROFESSIONAL TRADESMEN
> ENGINEERS
> DO-IT-YOURSELF (DIY)

APPLICATION:
> ENGINEERING
> FIELD WORK

Condition: NEW
